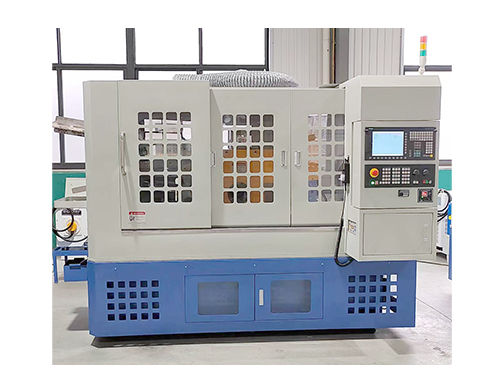

Bearing roller outer diameter grinder

The bearing roller outer diameter grinder is a high-precision machine tool specifically designed for machining the outer diameter of bearing rollers. The following is a detailed introduction to the bearing roller outer diameter grinder:

I. Definition and Application

The bearing roller outer diameter grinder is mainly used for precision grinding of the outer diameter of the bearing roller to ensure its dimensional accuracy, surface quality, and geometric shape meet the design requirements. This type of machine tool has a wide range of applications in the bearing manufacturing industry and is one of the indispensable equipment for producing high-precision bearings

2. Working Principle

The working principle of the bearing roller outer diameter grinder is similar to that of a general internal or external grinder, which fixes the workpiece on the spindle through a fixture and drives the grinding wheel to grind the surface of the workpiece through rotation and feed motion.

. Specifically, its workflow usually includes the following steps:

Place the bearing rollers into the fixture and clamp them using pneumatic or hydraulic means

Select appropriate grinding wheels and abrasives, and choose appropriate grinding parameters based on the material and requirements of the bearing rollers

Start the machine tool, the spindle begins to rotate, and the grinding wheel also rotates accordingly

The grinding motion of the skateboard begins, and the outer diameter of the bearing roller is ground through the radial movement of the skateboard

During the grinding process, the machine tool sprays coolant through nozzles to cool the grinding wheel and bearing rollers, reducing the frictional heat generated during the grinding process

When the predetermined machining size and roughness requirements are reached, stop the grinding motion and remove the machined bearing rollers from the fixture

III. Main Features

High precision: Bearing roller outer diameter grinding machines typically use high-precision transmission and control systems to ensure stability and accuracy during the grinding process.

High efficiency: By optimizing grinding parameters and adopting advanced grinding technology, the bearing roller outer diameter grinder can achieve efficient and fast grinding processing

High degree of automation: Modern bearing roller outer diameter grinders are usually equipped with functions such as automatic feeding, automatic clamping, automatic measurement, and automatic adjustment, greatly improving production efficiency and processing quality

Strong adaptability: The bearing roller outer diameter grinder can be adjusted and optimized according to different processing requirements to adapt to various types, sizes, and materials of bearing roller processing

Fourth, Application Fields

Bearing roller outer diameter grinder has a wide range of applications in the bearing manufacturing industry, especially in the production of high-precision and high-quality bearings.

. In addition, it can also be used in other fields that require high-precision grinding processing, such as automotive manufacturing, mechanical manufacturing, aerospace, etc

Fifth, Maintenance

In order to ensure the long-term stable operation and processing quality of the bearing roller outer diameter grinder, regular maintenance and upkeep are necessary.

. Here are some common maintenance and upkeep measures:

Regularly check whether the transmission system, control system, and lubrication system of the machine tool are working properly

Regularly clean the dust and debris inside the machine tool to maintain its cleanliness and tidiness

Regularly check the wear of grinding wheels and abrasives, and replace severely worn grinding wheels and abrasives in a timely manner

Regularly lubricate and maintain the machine tool to ensure the smooth and stable operation of all components
